Many enthusiasts think an aftermarket air intake simply allows the turbocharger to “breathe easier.” While that is true, there is another reason performance air intakes are often so effective that most people never see.
Hidden within the ECU calibration is a protection map that limits allowable turbocharger pressure ratio based on intake depression (vacuum) before the compressor.
Understanding Intake Depression
Intake depression is simply the pressure drop that occurs as air is pulled through the intake system.
As airflow demand increases, restrictions such as:
- Factory air boxes
- Small inlet tubing
- Dirty air filters
- Sharp bends
- Undersized intake components
all increase the vacuum seen at the turbocharger inlet.
The harder the turbocharger must pull air through these restrictions, the greater the intake depression becomes.
The Turbo Protection Strategy
Mercedes engineers include a protection map that reduces allowable turbocharger pressure ratio as inlet restriction increases.
The purpose is simple:
If the compressor is forced to operate at a high pressure ratio while simultaneously experiencing significant inlet vacuum, turbocharger shaft speed can increase dramatically. Excessive shaft speed can damage the turbocharger and reduce reliability.
The ECU therefore begins reducing allowable boost as intake restriction rises.
Stock Calibration
In the factory calibration, allowable pressure ratio drops aggressively as inlet depression increases.
As restriction rises, the ECU effectively tells the turbocharger:
“You may no longer operate at the same boost level because doing so could overspeed the compressor.”
This strategy protects the turbochargers under worst-case conditions, including:
- Dirty air filters
- Aging intake systems
- Manufacturing tolerances
- Extreme environmental conditions
While excellent for reliability, it also means performance is left on the table.
Why Performance Air Intakes Work So Well
A less restrictive intake reduces pressure drop before the compressor.
When inlet depression remains low:
- Turbocharger efficiency improves
- Compressor shaft speed is reduced for a given boost level
- The ECU remains within its allowable pressure ratio limits
- Higher airflow can be maintained
This is one of the major reasons why quality air intakes often produce gains far beyond what many people expect.
The intake is not simply increasing airflow.
It is also helping the turbocharger remain within a more favorable operating region where the ECU’s protection strategies are less likely to intervene.
Our Calibration Changes

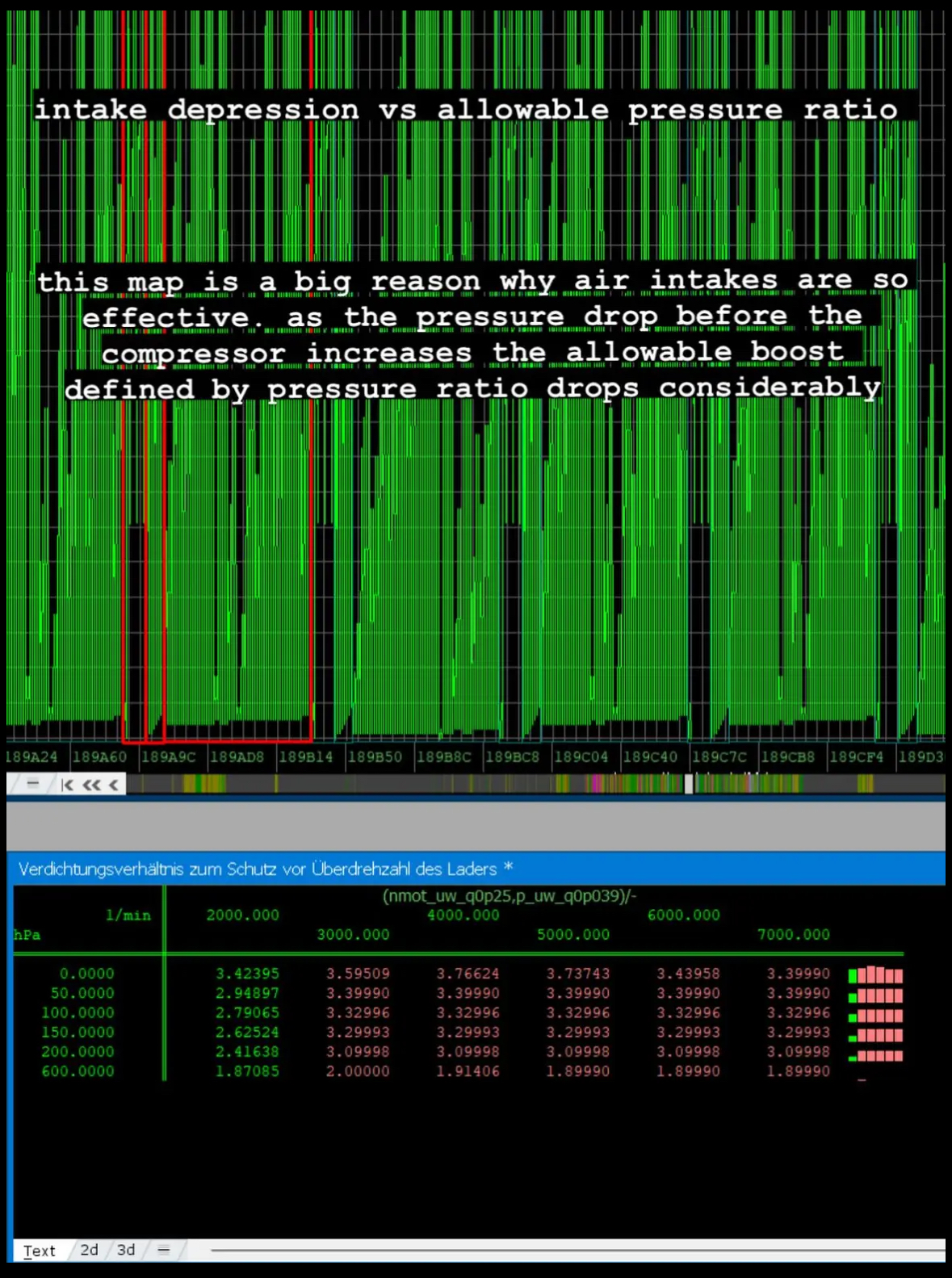

The highlighted values in red show areas where we have modified the factory protection strategy.
The stock values (green) rapidly reduce allowable pressure ratio as intake depression increases. While this provides an additional safety margin for highly restrictive conditions, it can become a limiting factor on performance-oriented vehicles equipped with improved intake systems.
Our calibration adjustments are designed to better reflect the reduced restriction present in upgraded intake configurations while still maintaining safeguards against excessive turbocharger speed.
The Bottom Line
Air intakes do much more than simply make induction noise.
By reducing pressure drop before the compressor, they help the turbocharger operate more efficiently and prevent the ECU from reducing allowable boost due to inlet restriction.
When combined with proper ECU calibration, a high-flow intake system can unlock measurable gains in airflow, boost consistency, turbocharger efficiency, and overall performance.
That’s why air intake upgrades continue to be one of the most effective supporting modifications for turbocharged Mercedes platforms.
